Developing a new Sabre Stage 5 ECU upgrade for the RS and ST MK2, let’s take a look at the benefits…

Focus RS & ST MK2  – Sabre Stage 5

The 2.5 turbo platform as used in the RS and ST MK2 continues to be enjoyed by many, and there is no sign of a slow down when it comes to tuning these engines. We should start by acknowledging that we have offered a very comprehensive Stage 4 upgrade path for the last few years including big turbo conversions up to 600bhp, and this remains the best option for most set-ups that follow the traditional hardware locations.

Of course, more recently we have seen an increase in alternative big turbo conversions, notably sidewinders and other non-traditional hardware layouts. This requires a very different approach to tuning and with the development of the Sabre Stage 5 platform we offer a very comprehensive tuning option that fully optimises these platforms with power goals up to 500-700bhp.

Let’s take a look below at the key features…

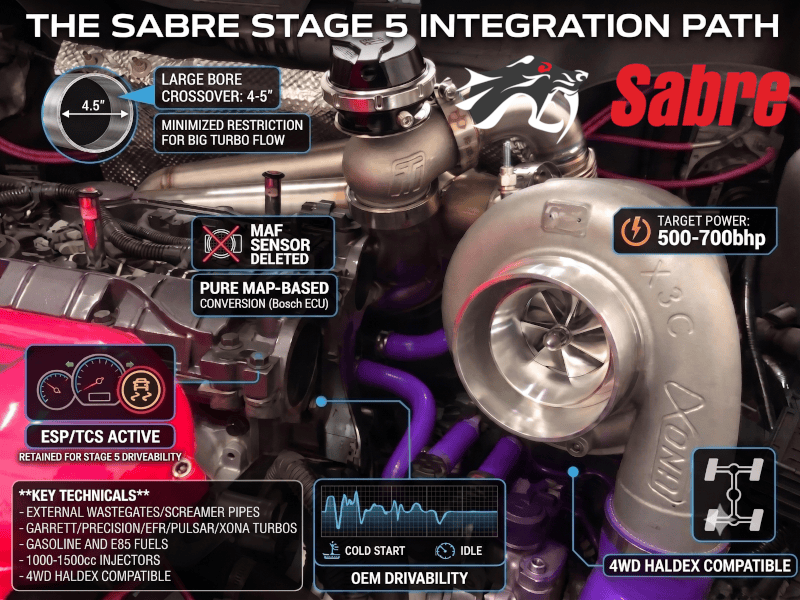

Key Technical Developments

• MAF Delete & Speed-Density Conversion: The factory Mass Air Flow (MAF) sensor is completely unpinned and deleted. The ECU’s airflow model now follows Manifold Absolute Pressure (MAP) and Intake Air Temperature (IAT) to mathematically track air mass and load calculation.
• 4″ – 5″ Large Bore Crossover Pipes: This major increase in cross-sectional area eliminates pre-compressor restriction, lowering turbocharger discharge temperatures and optimising compressor efficiency at high pressure ratios.
• Unusual Layout Flexibility (Sidewinder & External Wastegates): The architecture is fully optimised for high-clearance sidewinder manifolds that reposition the turbocharger to the side of the engine bay and incorporate very short intake tracts.
• Advanced Fuel Injection Dynamics (1000–1500cc): Engineered specifically for motorsport-grade injectors (e.g., 1000cc, 1200cc, and 1500cc configurations). Full control of large injectors for drivability, economy and emissions.

• Class-Leading Knock Control: Optimised factory Bosch individual-cylinder closed-loop knock control. Ignition timing is adapted dynamically per cylinder based on targeted acoustic frequencies, providing an essential safety net when running high boost on pump fuels or E85.
• Factory Traction Control (ESP) Enabled: Historically, unplugging the MAF sensor drops CAN-bus torque synchronisation, instantly disabling factory traction control. The Stage 5 calibration retains the factory ABS/ESP module and allows full use of the ESP button without dash lights.
• 4WD Haldex Conversion Compatibility: Developed to fully support custom 4WD Haldex conversions allowing you to switch from FWD to AWD seamlessly.
• OEM Drivability, Idle, and Cold Start: Enjoy perfect closed loop fuel control, economy and emissions. Cold start, idle and drivability retain full OEM+ features and allow the car to drive and function as you would expect.
